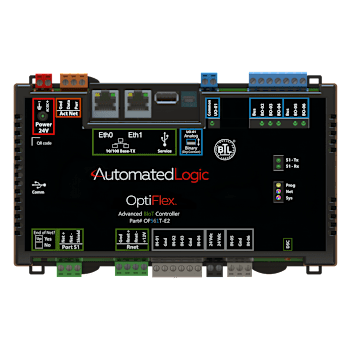

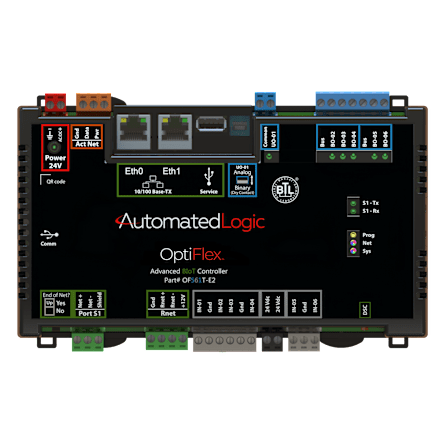

OptiFlex™ Advanced Equipment Controller – OF561T-E2
The OptiFlex Advanced Equipment Controller, model OF561T-E2, is ideal for small equipment control applications such as fan coil units, heat pumps, and advanced zone control applications requiring direct connection or daisy chain topology over BACnet/IP and integration of devices such as VFDs, electric meters, lighting systems and Modbus occupancy sensors.
OptiFlex™ Advanced Equipment Controller – OF561T-E2
Application Features
- Versatile controller suitable for a variety of applications, including chilled beams, exhaust fans, unit vents, air curtains, and advanced zone control
- Standard library of control programs available for most unitary equipment and zone applications
- Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
- Supports Automated Logic communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
- Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
- Supports OptiPoint smart valves and accessories
- Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
Hardware Features
- Dual, Ethernet ports support daisy chain BACnet over IP; Spanning Tree Protocol (STP) enabled
- Supports 50 Modbus points for system integration
- Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
- Capacitor-backed real-time clock keeps time in the event of power failure for at least three days
- USB port for local device updates; hard-wired and wireless service connections
- Large termination strips for easy installation
- Firmware upgrades can be performed remotely
- DIN rail or screw mounting
- Can be installed in mechanical rooms, equipment boxes, or almost any other weather-tight location
System Benefits
- Connects seamlessly to the WebCTRL building automation system
- Versatile controller suitable for a variety of applications, including chilled beams, exhaust fans, unit vents, air curtains, and advanced zone control
- Standard library of control programs available for most unitary equipment and zone applications
- Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
- Supports Automated Logic communicating ZS sensors, which are available in a variety of zone and equipment sensing combinations
- Supports OptiPoint™ touchscreen interfaces for managing and troubleshooting the connected equipment easily and for occupant engagement
- Supports OptiPoint smart valves and accessories
- Supports live, visual displays of control logic, helping operators troubleshoot and optimize system operation
- Dual, Ethernet ports support daisy chain BACnet over IP; Spanning Tree Protocol (STP) enabled
- Supports 50 Modbus points for system integration
- Uses non-volatile memory to store control programs and historical data, eliminating the need for batteries
- Capacitor-backed real-time clock keeps time in the event of power failure for at least three days
- USB port for local device updates; hard-wired and wireless service connections
- Large termination strips for easy installation
- Firmware upgrades can be performed remotely
- DIN rail or screw mounting
- Can be installed in mechanical rooms, equipment boxes, or almost any other weather-tight location
- Connects seamlessly to the WebCTRL building automation system
