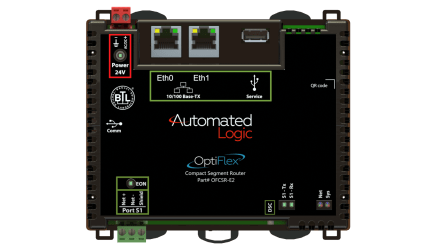

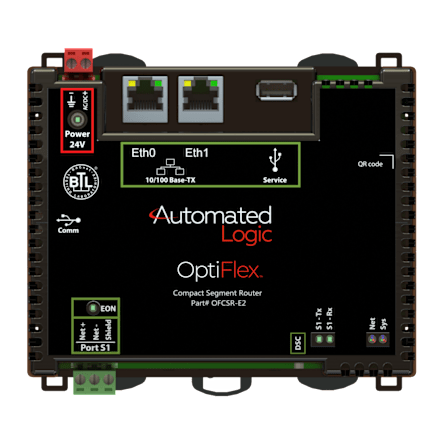

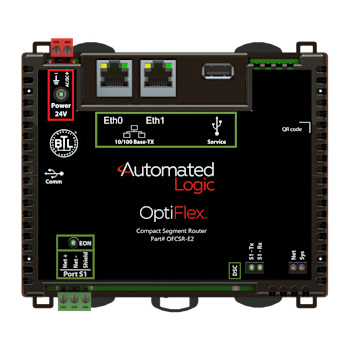

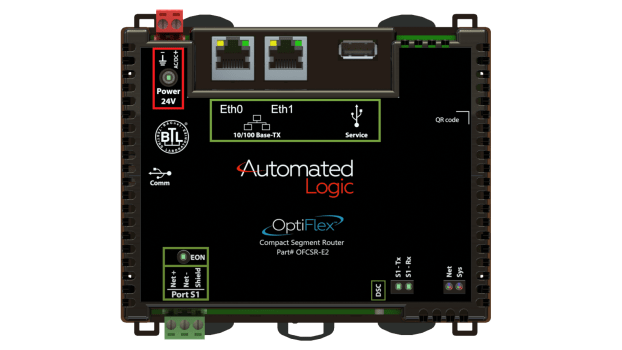

OptiFlex™ Compact Segment Router - OFCSR-E2
The OptiFlex compact segment router (OFCSR-E2) is designed to facilitate seamless migration from traditional serial network segments to fast and performant IP backbones. The OFCSR-E2 features dual IP ports for convenient daisy-chain deployment and offers robust routing capabilities between BACnet®/IP, BACnet Ethernet, BACnet/ARCnet, and BACnet MS/TP networks. It also features a compact footprint for more flexible system design.
OptiFlex™ Compact Segment Router - OFCSR-E2
Hardware Features
- Supports IPv4 networks
- Two 10/100 Mbps ethernet ports with fail-safe relay
- Web server local access for configuring networks, alarms, notifications, etc.
- Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for up to three days
- Compact and rugged plastic enclosure for easy DIN-rail or panel mounting
- One MS/TP/ARCnet port supporting speeds from 9.6 to 115.2 Kbps for MS/TP or 156 Kbps for ARCNET
- USB service port for local service: connect PC via a hard-wired connection or wirelessly using a USB-W adapter
- Smaller form factor simplifies installation and optimizes space
BACnet Features
- Includes three physical communication ports: two 10/100 Mbps BACnet IP/Ethernet ports, and one high-speed EIA-485 port for BACnet/ARCnet or BACnet/MS/TP
- Conforms to the BACnet Router B-RTR and BBMD standard device profiles
- Can serve as a BACnet Broadcast Management Device (BBMD) routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
- Supports BACnet Foreign Device Registration (FDR)
System Benefits
- Connects seamlessly to the WebCTRL building automation system
- Supports IPv4 networks
- Two 10/100 Mbps ethernet ports with fail-safe relay
- Web server local access for configuring networks, alarms, notifications, etc.
- Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for up to three days
- Compact and rugged plastic enclosure for easy DIN-rail or panel mounting
- One MS/TP/ARCnet port supporting speeds from 9.6 to 115.2 Kbps for MS/TP or 156 Kbps for ARCNET
- USB service port for local service: connect PC via a hard-wired connection or wirelessly using a USB-W adapter
- Smaller form factor simplifies installation and optimizes space
- Includes three physical communication ports: two 10/100 Mbps BACnet IP/Ethernet ports, and one high-speed EIA-485 port for BACnet/ARCnet or BACnet/MS/TP
- Conforms to the BACnet Router B-RTR and BBMD standard device profiles
- Can serve as a BACnet Broadcast Management Device (BBMD) routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
- Supports BACnet Foreign Device Registration (FDR)
- Connects seamlessly to the WebCTRL building automation system
