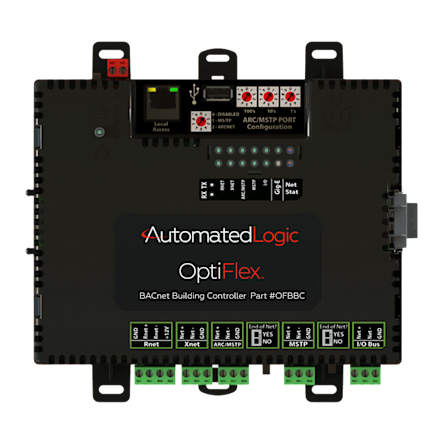

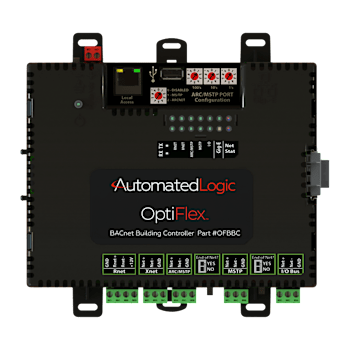

OptiFlex™ BACnet Building Controller – OFBBC-NR
The OFBBC-NR provides the speed, power, memory, and I/O flexibility needed for the most demanding control applications in the industry. Capable of controlling multiple pieces of HVAC equipment simultaneously, this robust BACnet controller can support complex control strategies.
OptiFlex™ BACnet Building Controller – OFBBC-NR
Application Features
- Designed to address HVAC applications, including complex central plants
- Graphically programmed through the EIKON® programming software, an object-oriented tool that provides complete flexibility for any custom control sequence
- Supports Automated Logic’s ZS communicating sensors, available in a variety of zone and equipment sensing options
- Enables live, visual displays of control logic, which uses real-time operational data and aids in optimizing and troubleshooting system operations
BACnet Features
- Conforms to the following device profiles:
- BACnet Building Controller (B-BC)
- BACnet BBMD (B-BBMD)
- Supports BACnet Foreign Device Registration (FDR)
Hardware Features
- Supports Gig-E, 1000 Mbps, BACnet IP and DHCP IP addressing
- Local Access Ethernet port at 100 Mbps for system start-up and troubleshooting
- Supports up to 9 FIO expanders in panel configuration or remotely mounted for scalable solutions (180 I/O total)
- Provides direct connect for power and communication for up to 7 FIO expansion modules when using a DC power supply
- All programs and historical data stored in non-volatile memory, eliminating the need for batteries
- Capacitor-backed real-time clock keeps time in the event of power failure or network interruption for up to three days
- Communications expansion port for future communication option cards
- Supports 200 Modbus points for system integrations
- USB port for local device updates
- DIN rail or screw mounting
System Benefits
- Connects seamlessly to the WebCTRL building automation system
- Multiple serial comunication ports to share data across a wide range of building subsystems
