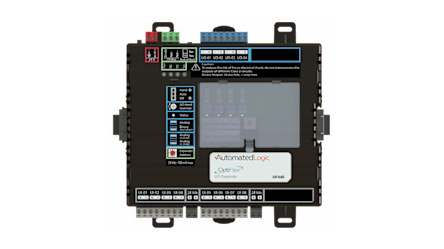

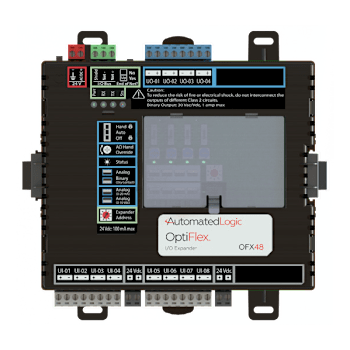

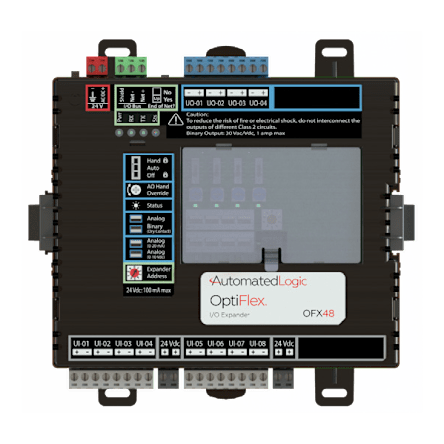

OptiFlex Equipment Expander – OFX48
The OptiFlex equipment expander delivers input and output capacity to the powerful OptiFlex Advanced Equipment Controller, OF683XT-E2.
Designed for flexible panel configurations, the OptiFlex equipment expander is DIN rail or screwtab mountable. It can be mounted directly to the OF683XT-E2 controller or remotely mounted up to 1,000’ away.
OptiFlex Equipment Expander – OFX48
Hardware Features
- Adds up to 4 outputs and 8 inputs (12 points total) to a OF683XT-E2 controller
- Removable screw terminals for I/O connections
- Hand-Auto-Off switches on all output channels
- Expanders can be mounted to the OF683XT-E2 in a compact configuration or remotely mounted up to 1,000 feet away
- Supports DIN rail or screw-tab mounting
System Benefits
- Connects seamlessly to the WebCTRL building automation system
- Supports demand limiting and optimal start for maximum energy savings
- Adds up to 4 outputs and 8 inputs (12 points total) to a OF683XT-E2 controller
- Removable screw terminals for I/O connections
- Hand-Auto-Off switches on all output channels
- Expanders can be mounted to the OF683XT-E2 in a compact configuration or remotely mounted up to 1,000 feet away
- Supports DIN rail or screw-tab mounting
- Connects seamlessly to the WebCTRL building automation system
- Supports demand limiting and optimal start for maximum energy savings
