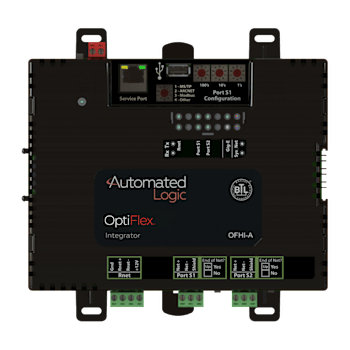

OptiFlex™ Integrator - OFHI-A

The OptiFlex Integrator, model OFHI-A, supports routing between multiple BACnet networks. It also supports custom control programs to easily integrate with third party BACnet or Modbus equipment such as variable speed drives, boilers, and lighting. The OFHI-A is also a Google® UDMI compliant gateway and device.

Integration Features
  • Supports routing between BACnet/IP, BACnet/Ethernet, BACnet ARCNET, BACnet MS/TP and BACnet/SC networks
  • Ships with 1,000 “any protocol” points and is expandable up to 5,000 total integration points
  • Supports KNX, Modbus TCP/IP, N2 Open, SNMP on the gigabit Ethernet port
  • Includes two Serial Ports to support BACnet/ARCNET networks (up to 254 ARCNET controllers), BACnet MS/TP networks (up to 127 controllers) or Modbus to simultaneously route and share data across a wide range of building systems
  • Can serve as a BACnet Broadcast Management Device (BBMD), routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
  • Supports BACnet Foreign Device Registration (FDR)
  • Can act as a Modbus server or client on a Modbus TCP/IP or serial network
Hardware Features
  • Supports IPv4, DHCP, DHCPv6, SLAAC addressing, and IPv6 networks
  • Ethernet port provides local access for system start-up and troubleshooting
  • Supports network captures for advanced diagnostics
  • Provides network statistics numerically or as trend graphs inside the WebCTRL building automation system
  • Supports DIN rail and screw mounting
  • Capacitor-backed real-time clock keeps time in the event of power failure for up to three days with no battery
System Benefits
  • Connects seamlessly to the WebCTRL building automation system
  • Supports routing between BACnet/IP, BACnet/Ethernet, BACnet ARCNET, BACnet MS/TP and BACnet/SC networks
  • Ships with 1,000 “any protocol” points and is expandable up to 5,000 total integration points
  • Supports KNX, Modbus TCP/IP, N2 Open, SNMP on the gigabit Ethernet port
  • Includes two Serial Ports to support BACnet/ARCNET networks (up to 254 ARCNET controllers), BACnet MS/TP networks (up to 127 controllers) or Modbus to simultaneously route and share data across a wide range of building systems
  • Can serve as a BACnet Broadcast Management Device (BBMD), routing any BACnet broadcast messages directly to other BBMD devices on the BACnet network
  • Supports BACnet Foreign Device Registration (FDR)
  • Can act as a Modbus server or client on a Modbus TCP/IP or serial network
  • Supports IPv4, DHCP, DHCPv6, SLAAC addressing, and IPv6 networks
  • Ethernet port provides local access for system start-up and troubleshooting
  • Supports network captures for advanced diagnostics
  • Provides network statistics numerically or as trend graphs inside the WebCTRL building automation system
  • Supports DIN rail and screw mounting
  • Capacitor-backed real-time clock keeps time in the event of power failure for up to three days with no battery
  • Connects seamlessly to the WebCTRL building automation system
