SE563a

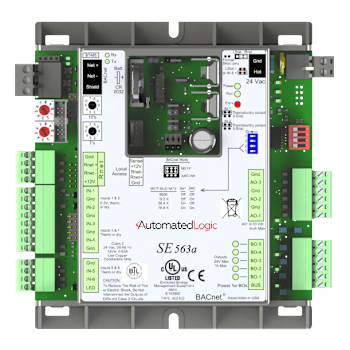

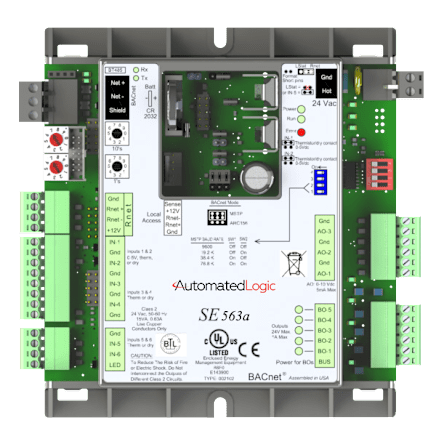

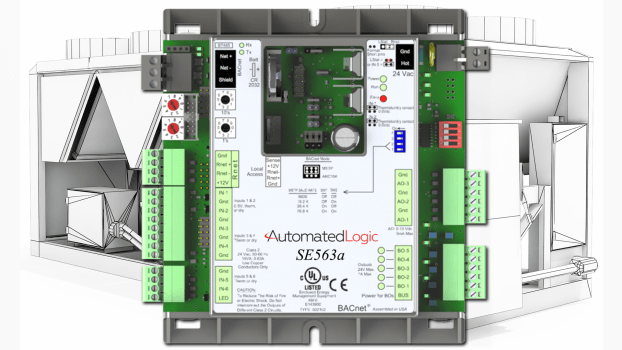

The Automated Logic® SE563A controller is an integral component of the WebCTRL® building automation system.
The SE563 is a fully programmable, native BACnet Advanced Application Controller (AAC) well suited for rooftop units, mechanical rooms, equipment closets, or almost any other weather-tight location. Fully programmable using the EIKON® software graphic programming language, the SE563A controllers use native BACnet communications over either a high-speed ARCNET 156 kbps network or a medium-speed MS/TP network to provide maximum flexibility and interoperability.
This model supports 2 programs and 400 objects.
SE563a
Application Features
- Versatile controller suitable for a variety of applications, including roof top units, pumping systems and boilers
- Standard library of control programs available for most single equipment applications
- Supports EIKON® graphical programming software, an object-oriented tool that provides complete flexibility for any custom control sequence that you need
- Supports Automated Logic communicating sensors, which are available in a variety of zone sensing combinations and support setpoint adjustment and occupancy overrides
- Supports Automated Logic touchscreen interfaces for managing and troubleshooting the connected equipment easily
- Supports live, visual displays of control logic, which uses real time operational data and aids in optimizing and troubleshooting system operations
- Quick & easy test and balancing process
Hardware Features
- Controls up to 14 points (5 binary outputs , 6 inputs and 3 analog outputs)
- High-speed, native BACnet over ARC156 communications delivers high speed response when you need it
- Supports native BACnet over MS/TP communications when required
- Fast, powerful, and fully distributed control allows complete independence from any other devices in the system
- Firmware upgrades can be performed remotely
- Easy startup and commissioning using the WebCTRL system user interfaces
- Battery-backed real-time clock keeps time in the event of power failure or network interruption
System Benefits
- Connects seamlessly to the WebCTRL building automation system
- Supports demand limiting and optimal start for maximum energy savings
- Versatile controller suitable for a variety of applications, including roof top units, pumping systems and boilers
- Standard library of control programs available for most single equipment applications
- Supports EIKON® graphical programming software, an object-oriented tool that provides complete flexibility for any custom control sequence that you need
- Supports Automated Logic communicating sensors, which are available in a variety of zone sensing combinations and support setpoint adjustment and occupancy overrides
- Supports Automated Logic touchscreen interfaces for managing and troubleshooting the connected equipment easily
- Supports live, visual displays of control logic, which uses real time operational data and aids in optimizing and troubleshooting system operations
- Quick & easy test and balancing process
- Controls up to 14 points (5 binary outputs , 6 inputs and 3 analog outputs)
- High-speed, native BACnet over ARC156 communications delivers high speed response when you need it
- Supports native BACnet over MS/TP communications when required
- Fast, powerful, and fully distributed control allows complete independence from any other devices in the system
- Firmware upgrades can be performed remotely
- Easy startup and commissioning using the WebCTRL system user interfaces
- Battery-backed real-time clock keeps time in the event of power failure or network interruption
- Connects seamlessly to the WebCTRL building automation system
- Supports demand limiting and optimal start for maximum energy savings
