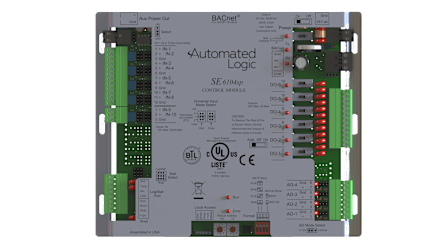

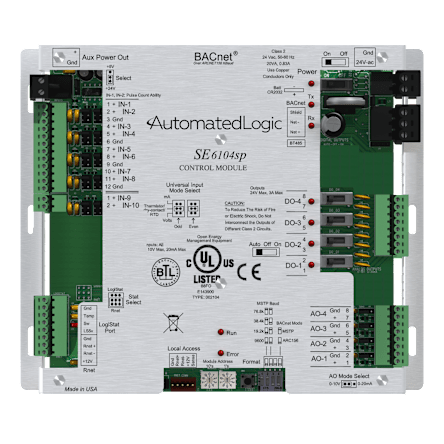

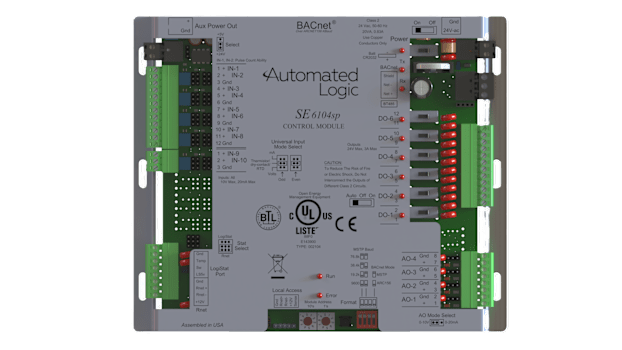

SE6104sp
The Automated Logic® SE controllers are an integral component of the WebCTRL® building automation system.
The SE6104sp controllers are fully programmable, native BACnet Advanced Application Controllers (B-AAC) that provide a rugged solution for single-equipment applications. Designed to operate in a wide range of environmental conditions, SE controllers can be used inside rooftop units, mechanical rooms, equipment closets, or almost any other weathertight location.
This model supports 1 program and 400 objects.
Application Features
- Versatile controller is suitable for various applications, including fan coil units, lighting, and exhaust fan control.
- Standard library of control programs available for most zoning applications.
- Supports EIKON® graphical programming software, an object-oriented tool that provides complete flexibility for any custom control sequence that you need.
- Supports Automated Logic® communicating sensors available in various zone and equipment sensing combinations and support setpoint adjustment and occupancy overrides.
- Supports Automated Logic OptiPoint touchscreen interfaces for managing and troubleshooting the connected equipment efficiently.
- Supports live, visual displays of control logic, which uses real-time operational data and aids in optimizing and troubleshooting system operations.
Hardware Features
- Controls up to 20 points (6 binary outputs, 10 universal inputs, and 4 analog outputs).
- High-speed, native BACnet over ARC156 communications delivers high-speed response when you need it. BACnet over MS/TP communication is also supported.
- Fast, powerful, and fully distributed control allows complete independence from any other devices in the system.
- Firmware upgrades can be performed remotely.
- Easy startup and commissioning using the WebCTRL system user interfaces.
System Benefits
- Connects seamlessly to the WebCTRL building automation system.
- Supports demand limiting and optimal start for maximum energy savings.
- Versatile controller is suitable for various applications, including fan coil units, lighting, and exhaust fan control.
- Standard library of control programs available for most zoning applications.
- Supports EIKON® graphical programming software, an object-oriented tool that provides complete flexibility for any custom control sequence that you need.
- Supports Automated Logic® communicating sensors available in various zone and equipment sensing combinations and support setpoint adjustment and occupancy overrides.
- Supports Automated Logic OptiPoint touchscreen interfaces for managing and troubleshooting the connected equipment efficiently.
- Supports live, visual displays of control logic, which uses real-time operational data and aids in optimizing and troubleshooting system operations.
- Controls up to 20 points (6 binary outputs, 10 universal inputs, and 4 analog outputs).
- High-speed, native BACnet over ARC156 communications delivers high-speed response when you need it. BACnet over MS/TP communication is also supported.
- Fast, powerful, and fully distributed control allows complete independence from any other devices in the system.
- Firmware upgrades can be performed remotely.
- Easy startup and commissioning using the WebCTRL system user interfaces.
- Connects seamlessly to the WebCTRL building automation system.
- Supports demand limiting and optimal start for maximum energy savings.
