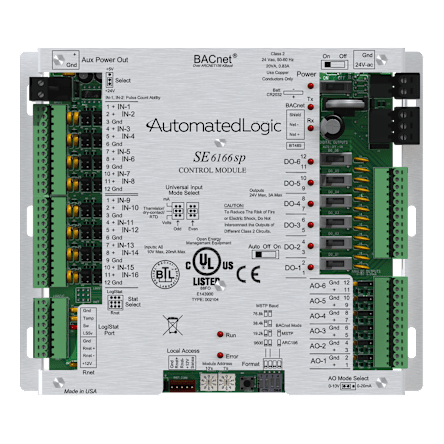

SE6166sp

The Automated Logic® SE controllers are an integral component of the WebCTRL® building automation system.

The SE6166sp controllers are fully programmable, native BACnet Advanced Application Controllers (B-AAC) that provide a rugged solution for single-equipment applications. Designed to operate in a wide range of environmental conditions, SE controllers can be used inside rooftop units, mechanical rooms, equipment closets, or almost any other weathertight location.

This model supports 1 program and 400 objects.

Application Features
  • Versatile controller is suitable for various applications, including fan coil units, lighting, and exhaust fan control.
  • Standard library of control programs available for most zoning applications.
  • Supports EIKON® graphical programming software, an object-oriented tool that provides complete flexibility for any custom control sequence that you need.
  • Supports Automated Logic® communicating sensors available in various zone and equipment sensing combinations and support setpoint adjustment and occupancy overrides.
  • Supports Automated Logic OptiPoint touchscreen interfaces for managing and troubleshooting the connected equipment efficiently.
  • Supports live, visual displays of control logic, which uses real-time operational data and aids in optimizing and troubleshooting system operations.
Hardware Features
  • Controls up to 28 points (6 binary outputs, 16 universal inputs, and 6 analog outputs).
  • High-speed, native BACnet over ARC156 communications delivers high-speed response when you need it. BACnet over MS/TP communication is also supported.
  • Fast, powerful, and fully distributed control allows complete independence from any other devices in the system.
  • Firmware upgrades can be performed remotely.
  • Easy startup and commissioning using the WebCTRL system user interfaces.
System Benefits
  • Connects seamlessly to the WebCTRL building automation system.
  • Supports demand limiting and optimal start for maximum energy savings.
  • Versatile controller is suitable for various applications, including fan coil units, lighting, and exhaust fan control.
  • Standard library of control programs available for most zoning applications.
  • Supports EIKON® graphical programming software, an object-oriented tool that provides complete flexibility for any custom control sequence that you need.
  • Supports Automated Logic® communicating sensors available in various zone and equipment sensing combinations and support setpoint adjustment and occupancy overrides.
  • Supports Automated Logic OptiPoint touchscreen interfaces for managing and troubleshooting the connected equipment efficiently.
  • Supports live, visual displays of control logic, which uses real-time operational data and aids in optimizing and troubleshooting system operations.
  • Controls up to 28 points (6 binary outputs, 16 universal inputs, and 6 analog outputs).
  • High-speed, native BACnet over ARC156 communications delivers high-speed response when you need it. BACnet over MS/TP communication is also supported.
  • Fast, powerful, and fully distributed control allows complete independence from any other devices in the system.
  • Firmware upgrades can be performed remotely.
  • Easy startup and commissioning using the WebCTRL system user interfaces.
  • Connects seamlessly to the WebCTRL building automation system.
  • Supports demand limiting and optimal start for maximum energy savings.
