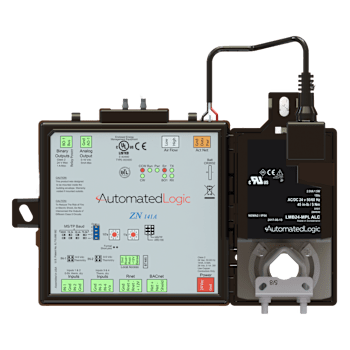

ZN141A
The ZN141A is a fully programmable, native BACnet Advanced Application Controller that provides zone level temperature and air quality control for pressureindependent VAV applications. Sophisticated preengineered control algorithms reduce energy consumption, extend actuator life, and increase occupant comfort. It communicates on an EIA-485 LAN using BACnet MS/TP or BACnet over ARCNET communications and connects seamlessly to the WebCTRL® building automation system.
ZN141A
APPLICATION FEATURES
- Versatile controller suitable for a variety of applications, including fan coil units, lighting, and exhaust fan control
- Standard library of control programs available for most zoning applications
- Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
- Supports Automated Logic® communicating sensors, which are available in a variety of zone sensing combinations and support setpoint adjustment and occupancy overrides
- Supports Automated Logic touchscreen interfaces for managing and troubleshooting the connected equipment easily
- Supports live, visual displays of control logic, which uses real time operational data and aids in optimizing and troubleshooting system operations
- Quick & easy test and balancing process
HARDWARE FEATURES
- Controls up to 6 points (1 binary outputs, 4 universal inputs and 1 analog output)
- Precision air flow sensor and advanced VAV algorithm increase occupant comfort at both minimum and maximum design air flows, while also extending actuator life
- High-speed, native BACnet over ARC156 communications delivers high speed response when you need it. BACnet over MS/TP communications is also supported
- Fast, powerful, and fully distributed control allows complete independence from any other devices in the system
- Firmware upgrades can be performed remotely
- Easy startup and commissioning using the WebCTRL system user interfaces
SYSTEM BENEFITS
- Connects seamlessly to the WebCTRL building automation system
- Supports demand limiting and optimal start for maximum energy savings
- Versatile controller suitable for a variety of applications, including fan coil units, lighting, and exhaust fan control
- Standard library of control programs available for most zoning applications
- Supports EIKON® graphical programming software, an object oriented tool that provides complete flexibility for any custom control sequence that you need
- Supports Automated Logic® communicating sensors, which are available in a variety of zone sensing combinations and support setpoint adjustment and occupancy overrides
- Supports Automated Logic touchscreen interfaces for managing and troubleshooting the connected equipment easily
- Supports live, visual displays of control logic, which uses real time operational data and aids in optimizing and troubleshooting system operations
- Quick & easy test and balancing process
- Controls up to 6 points (1 binary outputs, 4 universal inputs and 1 analog output)
- Precision air flow sensor and advanced VAV algorithm increase occupant comfort at both minimum and maximum design air flows, while also extending actuator life
- High-speed, native BACnet over ARC156 communications delivers high speed response when you need it. BACnet over MS/TP communications is also supported
- Fast, powerful, and fully distributed control allows complete independence from any other devices in the system
- Firmware upgrades can be performed remotely
- Easy startup and commissioning using the WebCTRL system user interfaces
- Connects seamlessly to the WebCTRL building automation system
- Supports demand limiting and optimal start for maximum energy savings
