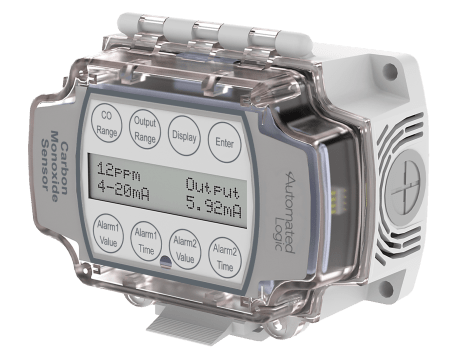

Carbon Monoxide Sensor
Automated Logic’s Carbon Monoxide Sensor offers enhanced electrochemical sensing with outstanding accuracy at low concentrations. This unit features a ventilated Box and is ideal for parking ramps, equipment rooms and warehouses.
The sensor has field selectable CO ranges of 0 to 100, 0 to 200, 0 to 300 and 0 to 500 ppm. It also has field selectable outputs of 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC and 3-wire 4 to 20 mA output. The large LCD is backlit for 10 seconds after any button push.
Two independent SPDT alarm contacts switch at field selectable CO concentrations of 25, 35, 50, 100 and 200 ppm. An alarm timer can hold the output relays on for one to ten minutes after the CO level has fallen below 80% of setpoint. This allows additional fan run time to be sure that the CO has been purged.
The field replaceable sensor element lasts approximately 7 years and is self tested daily.
Carbon Monoxide Sensor
| Part Number | Description |
|---|---|
| NSB-CO-V-BB-A | Rough Service Carbon Monoxide Sensor in a Ventilated Box |
| NSB-COS-A | Factory Calibrated Replacement CO Module |
| Sensing Element Accuracy: | <200ppm = ±3% FS, 32 to 122°F (0 to 50°C)
201 to 500 ppm = ±5% FS, 50 to 122°F (10 to 50°C) |
| Field Selectable Ranges: | 0 to 100, 0 to 200, 0 to 300, and 0 to 500 ppm |
| Power Supply: | 18 to 28 VAC, 7.2 VA Max
18 to 40 VDC, 180 mA Max |
| Alarm Relays: | 2 Independent, Dry SPDT (Form C)
2 Amps at 24 VAC/DC, Resistive 140 VA Inrush, 48 VA Holding at 24 VAC |
| Environmental Operating Range: | 14 to 122°F (-10 to 50°C)
5 to 95%RH Noncondensing |
| Field Wiring Terminals: | Pluggable Screw Terminals, 14 to 24 AWG |
| Response Time: | <80 seconds from 10% to 90% of range |
| Alarm Relay Setpoints: | 25, 35, 50, 100 or 200 ppm |
| Alarm Timer: | 0, 1, 5 and 10 minutes |
| Sensor Element Life: | 7 years typical |
| Field Selectable Outputs: | 3-wire 4 to 20 mA
0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC |
| Certifications: | RoHS and CE |
