Remote Temperature Probes
Automated Logic’s Remote Sensors feature a .75” long encapsulation shell and etched Teflon leads in lengths of 6”, 18”, 5’, 10’, 15’, 20’, and 25’. Remote Sensors are perfect for tight locations. Additional cable options, lead lengths and probe styles are available.
Remote Temperature Probes
Specifications
Environmental Operation Range:
- Temperature Sensor: -40 °C to 105 °C
- Temperature Transmitter: -20 °C to 70 °C
- Humidity: 0 to 100%, non-condensing
- Round Probe: Stainless Steel
- Concave Probe: Brass
- Resistance: 10 kΩ @ 25°C, -55 to 150°C range
- Standard Accuracy: 0.2°C (±0.36°F) at 0 to 70°C
- Dissipation Constant: 2.7 mW/°C
- Stability(drift): Less than ±0.1°C (0.18°F) drift over 10 years
| Part Number | Description |
|---|---|
| NSB-10K-2-RPP-6-A | REMOTE PROBE WITH PLENUM RATED CABLE - 6 IN. NO LOGO |

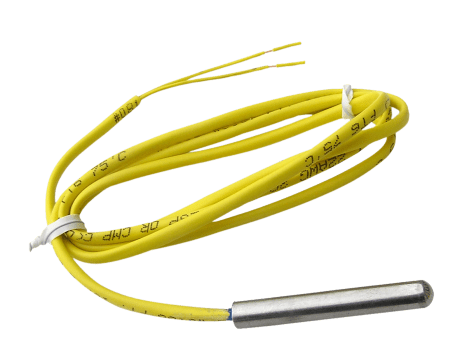

| NSB-10K-2-RPP-5-A | REMOTE PROBE WITH PLENUM RATED CABLE - 5 FT. NO LOGO |
| NSB-10K-2-RPP-25-A | REMOTE PROBE WITH PLENUM RATED CABLE - 25 FT. NO LOGO |
| NSB-10K-2-RPP-15-A | REMOTE PROBE WITH PLENUM RATED CABLE - 15 FT. NO LOGO |
| NSB-10K-2-RPP-10-A | REMOTE PROBE WITH PLENUM RATED CABLE - 10 FT. NO LOGO |
| NSB-10K-2-RPFEP-5-A | REMOTE PROBE WITH FEP JACKETED CABLE - 5 FT. LEADS NO LOGO |
| NSB-10K-2-RPFEP2-5-A | REMOTE TEMP PROBE FOR SUBMERSION - 5 FT. PROBE NO LOGO |
| NSB-10K-2-RPFEP2-25-A | REMOTE TEMP PROBE FOR SUBMERSION - 25 FT. PROBE NO LOGO |
| NSB-10K-2-RPFEP-18-A | REMOTE PROBE WITH FEP JACKETED CABLE - 18 IN. LEADS NO LOGO |
