CCV Valves & Damper Actuators
Automated Logic’s smart valve and damper actuators integrate seamlessly with the WebCTRL® system providing real-time data for rapid fault detection. Operators receive immediate alerts for failure, sticking, or leaks. Smart valves feature CCV™ technology ensuring precise flow and energy efficiency across various temperatures. Smart damper actuators use Multi-Function Technology (MFT) for precise damper control and efficiency.
CCV Valves & Damper Actuators
Key Features & Benefits
- Smart devices support serial communications for precise valve / damper position management without consuming physical I/O on the controller (OptiFlex controllers required)
- Connect up to eight smart devices directly to the actuator sub-network (Act Net) bus on any Act Net-enabled Automated Logic controller, reducing wiring complexity and installation time
- Exact position feedback provided to the WebCTRL system for diagnostic purposes
- Act Net auto-address configuration provides quick installation
- Smart Valve Selector Tool allows for faster product selection
- Ideal for AHUs, heating and cooling coils, FCUs, unit ventilators and VAV re-heat coils
- Supports analog (2-10V) connections

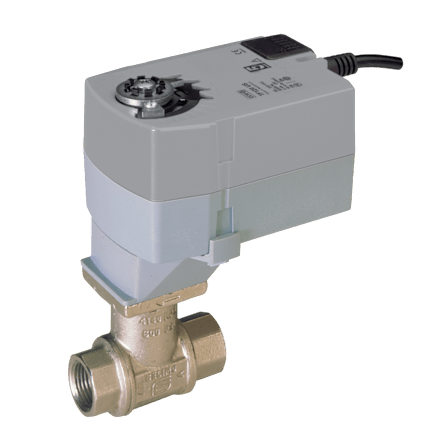

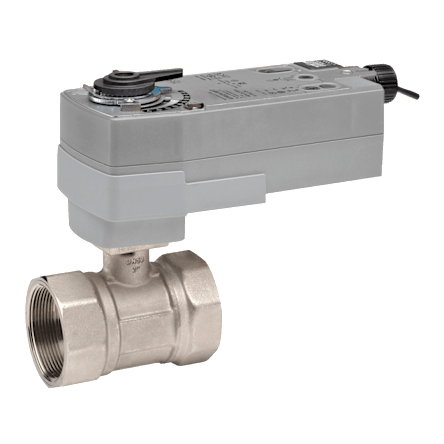

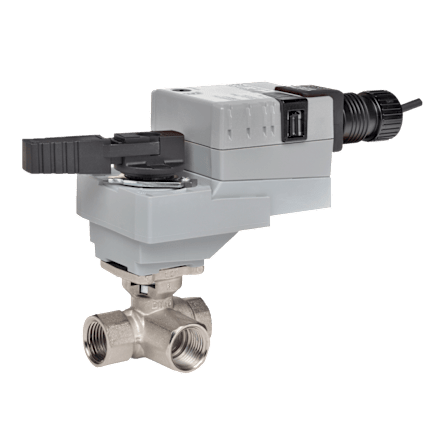

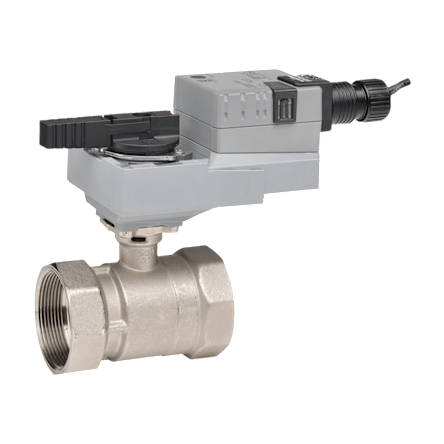

Smart Valves
- 2-way or 3-way valve and actuator combination options
- Product ranges from 1/2” to 6” nominal valve sizes
- Fail-Safe (NO/NC) and Non-Fail-Safe (NO, fail open/NO, fail closed and NC, fail open/NC, fail closed) rotary actuator types
- Multiple CV product options
- NPT connections on 1/2” to 3” valve sizes, ANSI 125, 250 flanges on 4” to 6” valve sizes

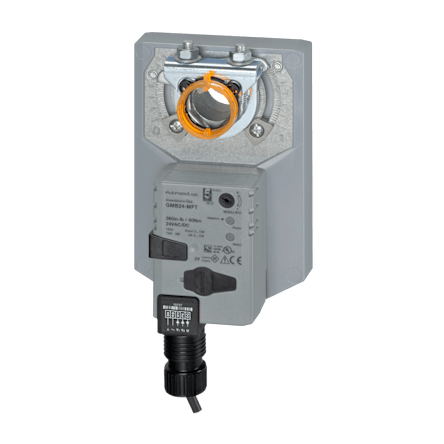

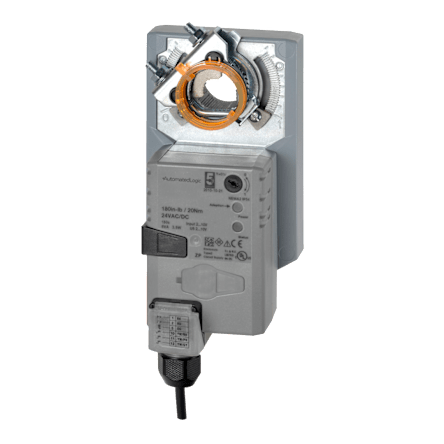

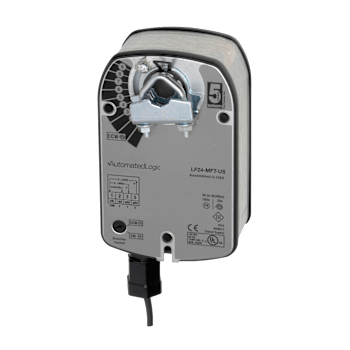

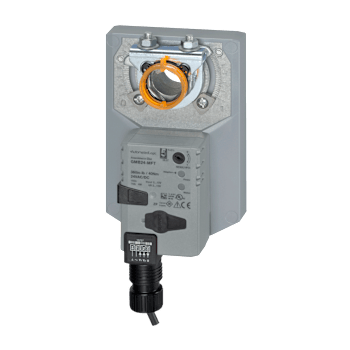

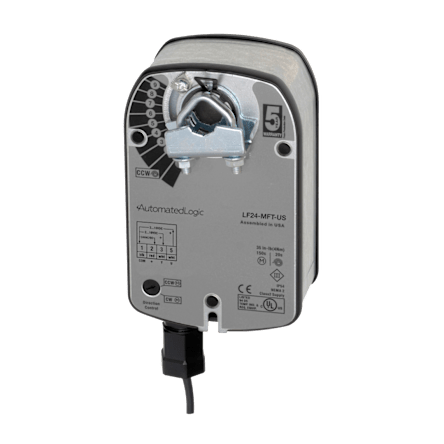

Smart Damper Actuators
- 35 in-lb to 360 in-lb actuator torque ranges1
- 24 VAC / VDC external power supply
- Quick running, clear position indication, and manual override
1Depends on actuator size and model
