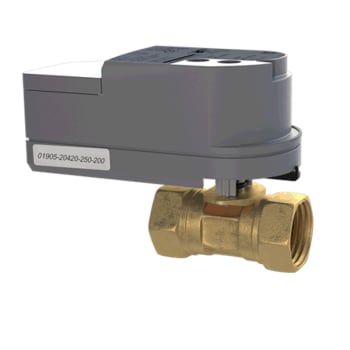

OptiPoint™ Pressure Dependent Valves
Valves for the WebCTRL® Building Automation System
The OptiPoint™ smart valves feature communicating actuators that allow Automated Logic terminal unit controllers to manage reheat valve positions directly using serial commands. This communications technology offers more precise control than conventional zone valves, as the actuator is capable of modulating to any position as directed by the controller and provides exact position feedback for diagnostic purposes.
Valves are available in both 2-way and 3-way models and come in a variety of sizes with different flow rates and fail-safe modes.
OptiPoint™ Pressure Dependent Valves
Key Features & Benefits
- Communicating Actuators: Valves feature communicating actuators, eliminating the need to use physical I/O on the controller. Up to two valves can be connected to the Act Net bus on any Act Net-enabled controller. Each valve is preaddressed for quick commissioning.
- Electronic Fail-Safe: Actuators utilize super capacitors to drive actuator to fail state (open, closed or in place, based on part number), on loss of power.
- Exact Position Feedback: Position feedback is communicated to the WebCTRL building automation system over the Act Net bus, helping to facilitate commissioning and ensure proper operation.
- Remote Accessibility: Valves can be accessed remotely via the WebCTRL system, enabling comprehensive analysis and quick error detection with Fault Detection & Diagnostics (FDD).
- Ball Valve Technology: Unlike short stroke globe valves, the self-cleaning ball helps minimize energy losses caused by clogging and eliminates overflow from pump pressure seat lift. In addition, high close-off capabilities ensure shutoff (0% A – AB leakage) and allow for true equal percentage flow characteristics.
- Snap Fit: The valve bodies easily connect to the actuator, allowing operators and technicians to install valves quickly, easily, and without the use of tools. This helps simplify commissioning and helps reduce labor costs. In addition, it makes it easy to retrofit existing non-communicating valves.
- Field Adjustable Max Cv/Flow: Valves can be easily adjusted either locally or remotely using the WebCTRL building automation system to ensure that necessary design requirements are met.
- Stem Extension for Insulation: Unlike conventional zone valve actuators, which are normally covered by pipe insulation, the valve stem extension allows for easy actuator removal without damaging the surrounding insulation, helping simplify operation and maintenance activities.
- Actuator with Patented Brushless DC Motor: The power consumption of the brushless DC motor is 2.5W (fail safe) and .6W (fail last position) when running and 0.5W (fail safe) and .4 (fail last position) when holding, helping to save energy and transformer power. This also helps eliminate failures due to stalled motors, helps prolongs actuator life, and also allows for more units to be powered by a single transformer.
